Changing the Connection Mode

You can switch the connection mode or change the network name (SSID) and other settings on the printer.
Setup is required when connecting to the printer for the first time. Return to the application software and set up the printer.

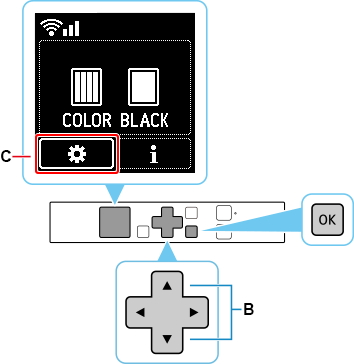

  1. Press the Back button (A) until the following HOME screen appears.

  2. Use the Left or Right button (B) to select setup (C) and press the OK button.

  3. Select LAN settings and press OK button.

  4. Select the connection mode you want to use and press OK button, then proceed with the setup.

    When Wi-Fi is selected

    Select Wi-Fi setup in the Wi-Fi screen and press OK button, then select a Wi-Fi setup method.

    When Wireless Direct is selected

    Select Connect to smartphone, and then follow the on-screen instructions.

When Changing Wireless Direct Settings

Select Setup in the HOME screen and press the OK button, and then select LAN settings and Wireless Direct.
Select Change network name (SSID), Change password, or 2.4GHz/5GHz switch and press OK button, then change the network name (SSID), password, or frequency band.

Note

  • Wireless Direct connects a device (such as a computer) to the printer at 2.4 GHz.
    To connect at 5 GHz, select 5GHz in the 2.4GHz/5GHz switch screen.
    Depending on your country or region, this printer does not support Wireless Direct using the 5 GHz band.
